Finite State Automaton Algorithm

Definition:​

The Finite State Automaton (FSA) algorithm is a string matching technique that constructs a mathematical model of states to perform pattern searching. It builds a state machine from the pattern, where each state represents a prefix of the pattern matched so far. The algorithm then processes the text character by character, transitioning between states to identify matches.

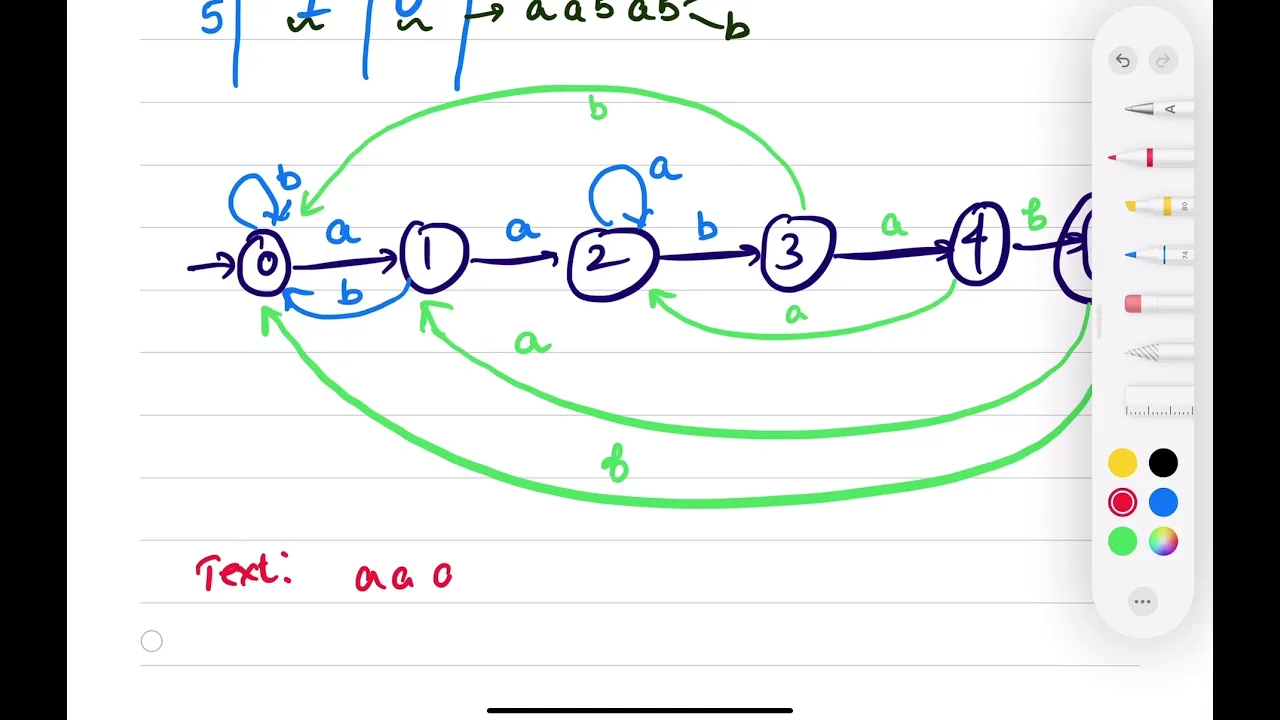

Video Explanation​

Watch

Characteristics:​

• State-Based Matching:

  • The FSA algorithm constructs a deterministic finite automaton (DFA) where states represent the longest prefix of the pattern matched at any point.
  • Each state transition is determined by the next character in the input text.

• Preprocessing Phase:

  • Creates a transition table that determines state transitions for each possible character.
  • Pre-computation allows for efficient text processing.

• Exact Matching:

  • Designed for exact pattern matching, finding all occurrences of the pattern in the text.
  • No approximate matching or wildcards are supported in the basic version.

• Memory Efficient Processing:

  • Once the automaton is constructed, text processing requires minimal additional memory.
  • Each character is processed exactly once without backtracking.

Time Complexity:​

• Preprocessing: $O(m|Σ|)$

  • Where m is the pattern length and |Σ| is the size of the alphabet.
  • Building the transition table requires computing transitions for each state and character.

• Pattern Matching: $O(n)$

  • Where n is the text length.
  • Linear time processing of the text, examining each character exactly once.

Space Complexity:​

• Space Complexity: $O(m|Σ|)$
  • Storage required for the transition table, where m is the pattern length and |Σ| is the alphabet size.
  • Each state needs transitions defined for every possible character.

C++ Implementation:​

#include <iostream>
#include <vector>
#include <string>
using namespace std;

#define CHAR_SIZE 256 // Extended ASCII

class FiniteAutomaton {
private:
    vector<vector<int>> transitionTable;
    int patternLength;

    // Compute prefix function for pattern
    int getNextState(string& pattern, int state, char x) {
        if (state < patternLength && x == pattern[state])
            return state + 1;

        for (int ns = state; ns > 0; ns--) {
            if (pattern[ns-1] == x) {
                int i;
                for (i = 0; i < ns-1; i++)
                    if (pattern[i] != pattern[state-ns+1+i])
                        break;
                if (i == ns-1)
                    return ns;
            }
        }
        return 0;
    }

public:
    // Constructor to build the automaton
    FiniteAutomaton(string& pattern) {
        patternLength = pattern.length();
        transitionTable.resize(patternLength + 1, vector<int>(CHAR_SIZE));

        // Build transition table
        for (int state = 0; state <= patternLength; state++) {
            for (int x = 0; x < CHAR_SIZE; x++) {
                transitionTable[state][x] = getNextState(pattern, state, x);
            }
        }
    }

    // Search pattern in text
    void search(string& text) {
        int state = 0;
        int n = text.length();

        for (int i = 0; i < n; i++) {
            state = transitionTable[state][text[i]];
            if (state == patternLength) {
                cout << "Pattern found at index: "
                     << i - patternLength + 1 << endl;
            }
        }
    }
};

int main() {
    string text = "AABAACAADAABAAABAA";
    string pattern = "AABA";

    FiniteAutomaton fa(pattern);
    fa.search(text);

    return 0;
}

Key Features:​

1. Pattern Preprocessing:

   • Constructs a complete state machine before text processing begins
   • Computes all possible transitions for each state
   • Handles pattern structure analysis efficiently

2. State Transitions:

   • Each state represents a partial match of the pattern
   • Transitions are deterministic and pre-computed
   • No backtracking required during text processing

3. Failure Functions:

   • Handles cases where partial matches fail
   • Efficiently moves to the next possible matching state
   • Optimizes the matching process for repeated patterns

Applications:​

• Text editors and word processors
• Network intrusion detection systems
• DNA sequence analysis
• Compiler lexical analysis
• Pattern matching in large datasets

Summary:​

The Finite State Automaton algorithm represents a powerful approach to string matching by utilizing state machines. Its preprocessing phase creates a comprehensive transition table that enables efficient text processing. While the initial preprocessing cost can be significant, especially for large alphabets, the linear-time text processing makes it highly efficient for scenarios where the same pattern is searched multiple times in different texts. The algorithm's deterministic nature and lack of backtracking make it particularly suitable for real-time applications and systems where predictable performance is crucial.
